Type 69
Accumulating conveyor roller with a double steel sprocket, fitted with two grooved ball bearings. Because it makes use of a friction coupling, this version is suitable for an accumulating roller conveyor for the transportation of heavy products with hard and flat undersides.
| Material | Steel C45 |
| Bearing | 6204 |
| Max-weight | 200 KG |

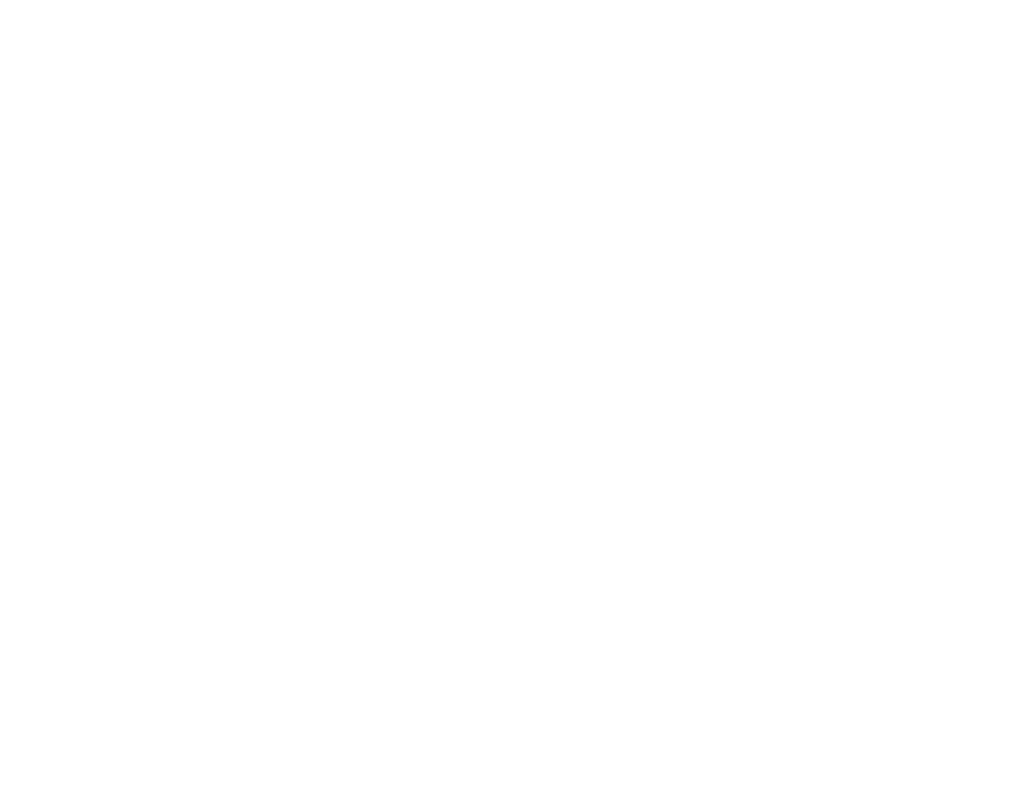

| Sprocket | 5/8x3/8” Z=15 |
| Color | Steel - Orange |
specifications
| Ø 20 | M 10 x 15 Internal thread sw 15 x 10 Spindle with flats Ø 20 x 15 Smooth spindle M 20 x 25 External thread met BD M 16 x 20Stepped spindle |
| Steel Zinkplated | Ø 63.5 x 2.9 Ø 80 x 2.0 Ø 82.5 x 3.2 Ø 88.9 x 3.2 |
| Stainless steel | Ø 80 x 2.0 Ø 88.9 x 3.2 |
| PVC 5005 | |
| PVC 7011 |
