Type 52

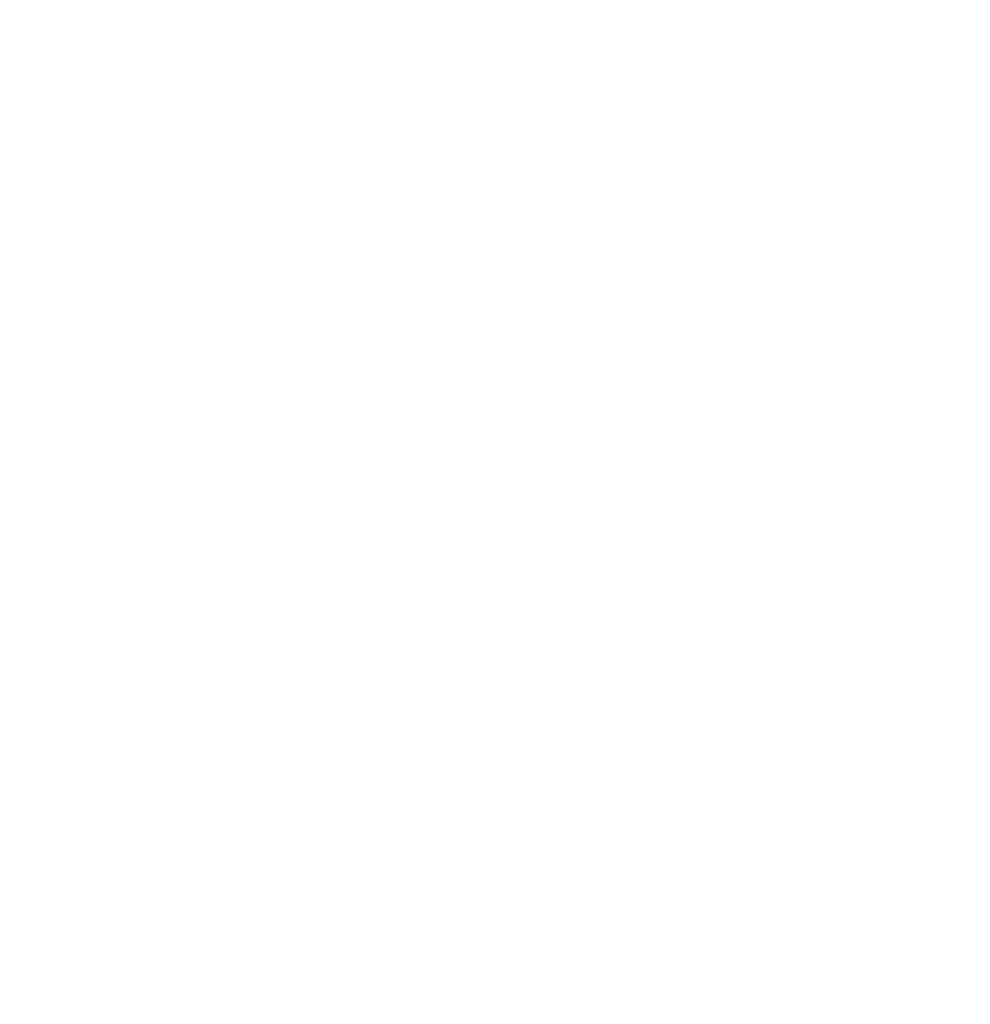

Fixed drive conveyor roller with a single plastic sprocket, fitted with two grooved ball bearings. Suitable for the transportation of lightweight products. This version is exclusively for use in continuous transport.
| Material | PA 6.6 HI |
| Bearing | 6202-6003 |
| Max-weight | 40 KG |
| Sprocket | 1/2x5/16” Z=14 |
| Color | Black - Orange |
specifications
| Ø 10 | M 6 x 12 Internal thread sw 8 x 10 Spindle with flats Ø 10 x 20 Smooth spindle M 10 x 15 External thread met BD M 8 x 15Stepped spindle |
| Ø 10 | sw 11 x 10 Spindle with flats |
| Ø 12 | M 6 x 12 Internal thread sw 10 x 10 Spindle with flats Ø 12 x 10 Smooth spindle M 12 x 15 External thread met BD M 10 x 15Stepped spindle |
| Ø 14 | M 8 x 15 Internal thread sw 12 x 10 Spindle with flats Ø 14 x 10 Smooth spindle M 14 x 20 External thread met BD M 10 x 15Stepped spindle |
| Ø 15 | M 8 x 15 Internal thread sw 12 x 10 Spindle with flats Ø 15 x 10 Smooth spindle met BD M 14 x 20Stepped spindle |
| Ø 17 | M 10 x 15 Internal thread sw 14 x 10 Spindle with flats Ø 17 x 12 Smooth spindle met BD M 16 x 20Stepped spindle |
| Steel Zinkplated | Ø 50 x 1.5 Ø 50 x 2.0 Ø 60 x 1.5 Ø 60 x 2.0 Ø 63.5 x 2.9 Ø 80 x 2.0 Ø 82.5 x 3.2 Ø 88.9 x 3.2 |
| Stainless steel | Ø 50 x 1.5 Ø 50 x 2.0 Ø 60 x 2.0 Ø 80 x 2.0 Ø 88.9 x 3.2 |
| PVC 5005 | Ø 50 x 2.8 Ø 63 x 3.0 Ø 90 x 7.0 |
| PVC 7011 | Ø 50 x 2.8 Ø 63 x 3.0 Ø 90 x 7.0 |
